Inside Page Artwork

When preparing artwork for printing, it’s crucial to use professional software like Adobe InDesign, which is tailored for print layouts. This software simplifies setting up documents in a spread format and includes features critical for print preparation such as bleed, trim marks, and colour management.

If your notebook is going to be fully or partially printed then here’s a breakdown of what we require:

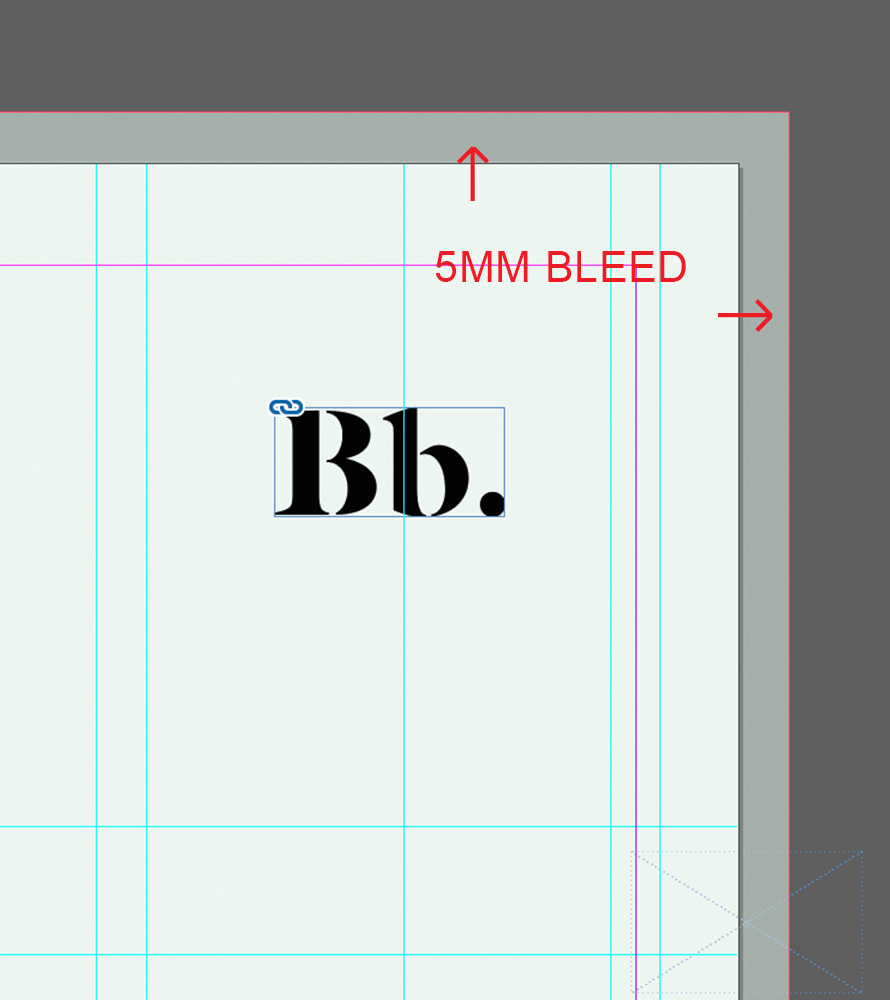

5mm Bleed

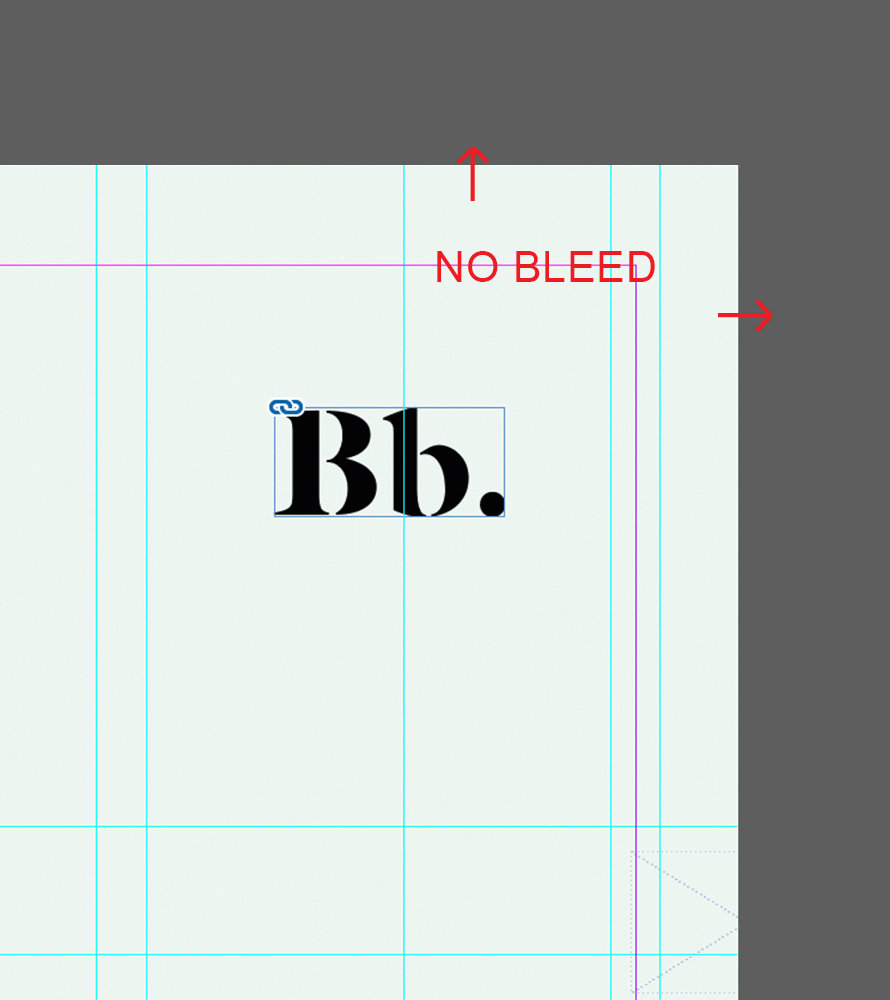

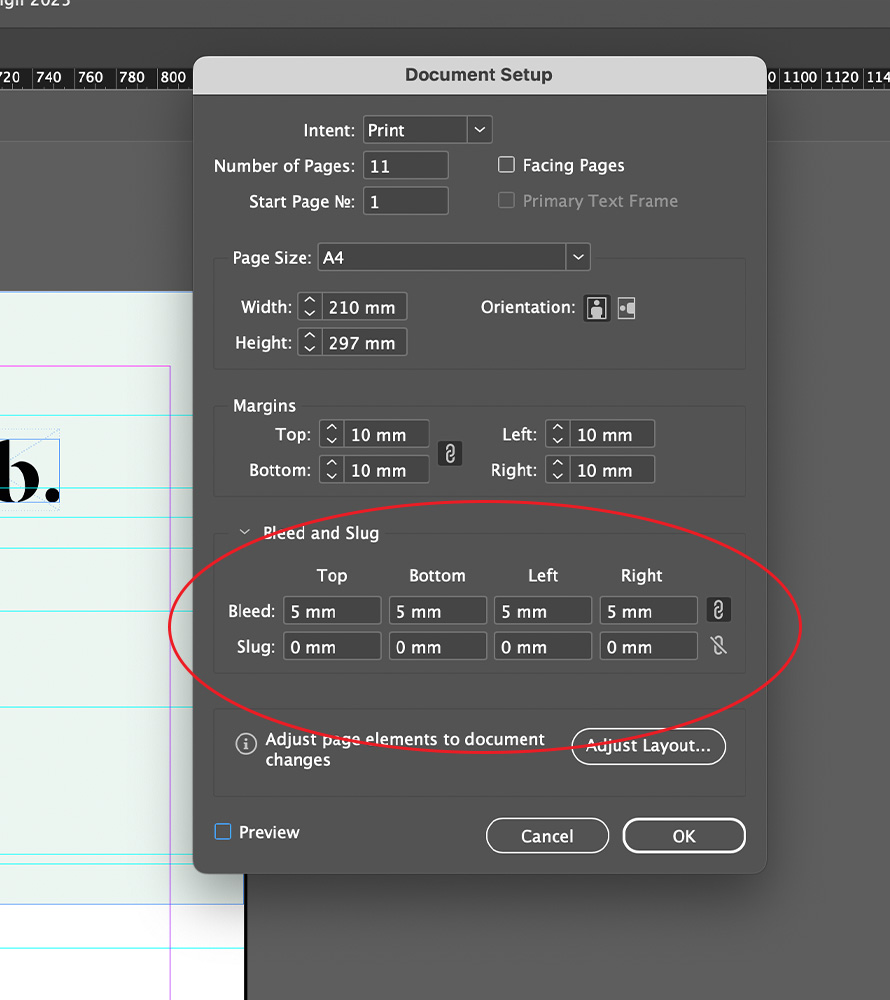

Bleeds are areas of your artwork that extend beyond the edge of the final printed page. They ensure that there are no white borders when the paper is trimmed. To add a bleed in InDesign simply click in File > Document setup, once you’ve added 5mm to your document settings make sure to also move the artwork off the page all the way to the bleed line.

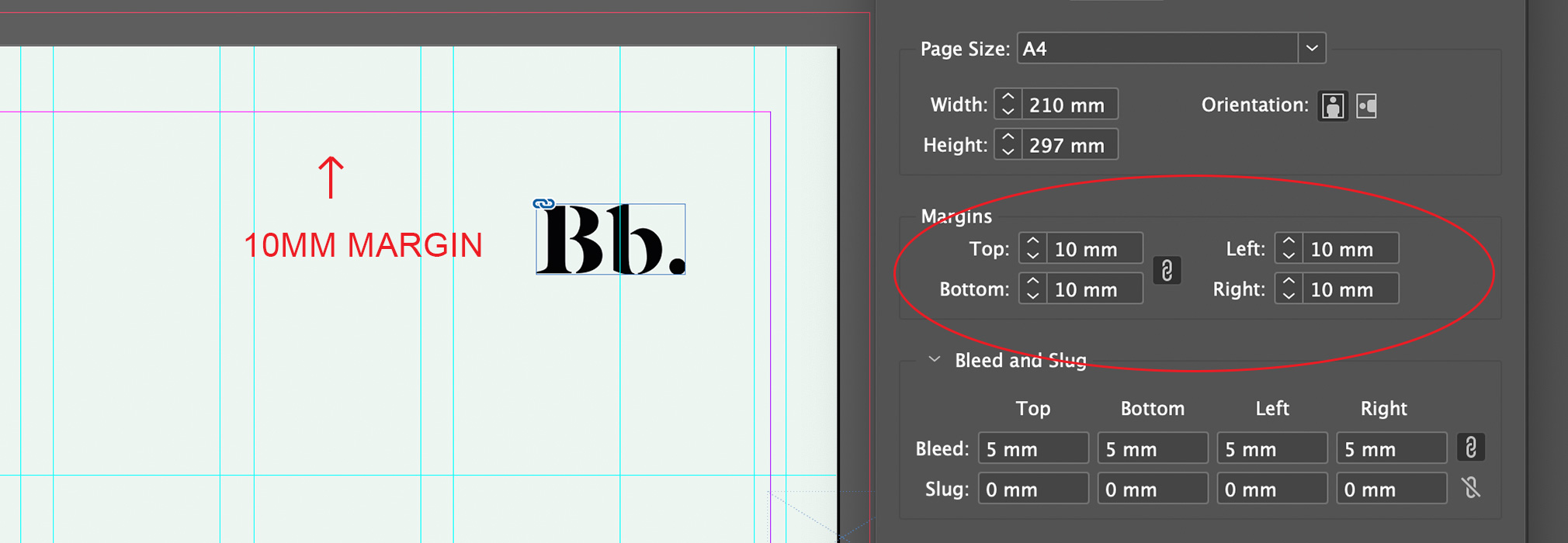

10mm Margins (at least)

All of the important elements of your artwork (text, logos etc) should be placed at least 10 mm from the trim line. Mark out the ‘safe areas’ by adding in some margin markers. Margins are set when you first create your file, you can also add and adjust these later on by clicking Layout > Margins and Columns

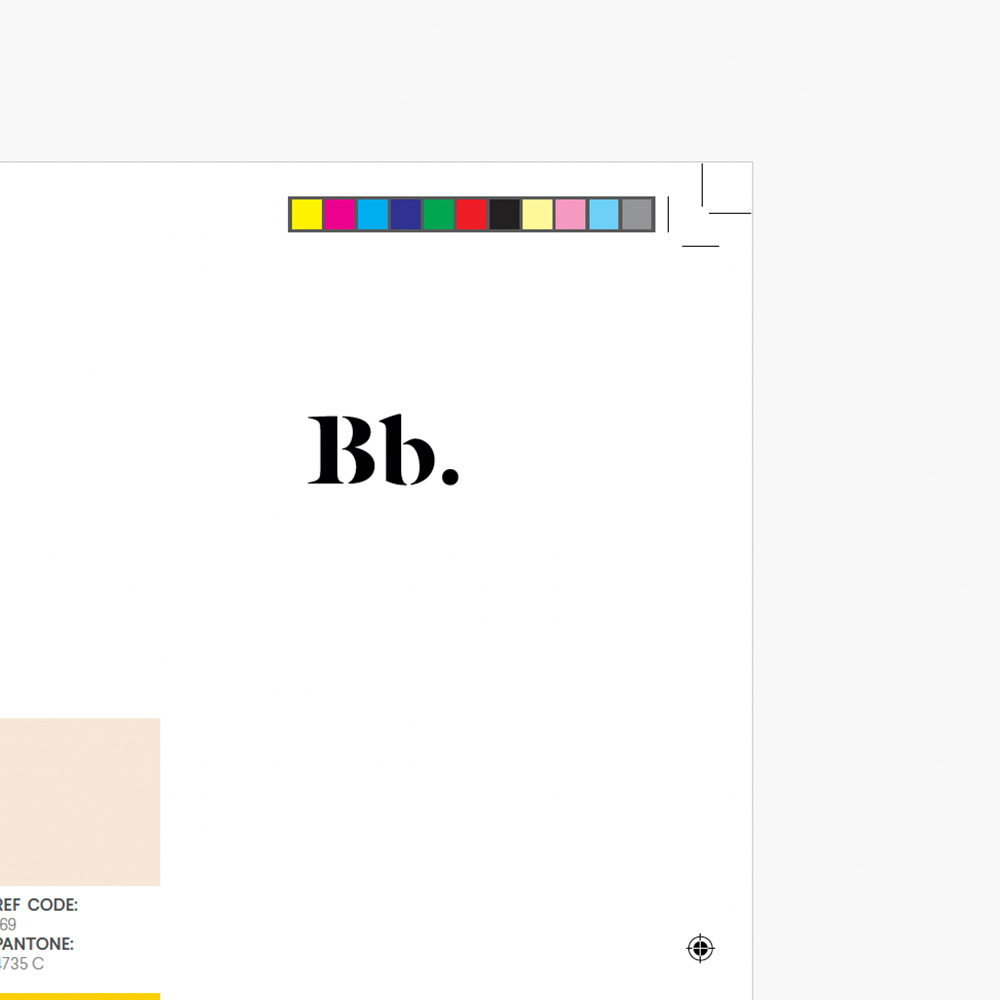

Exporting Bleeds and Marks

We ask that you export your files with all of the mark options available on InDesign, these will help us with the placement and crops for the final print.

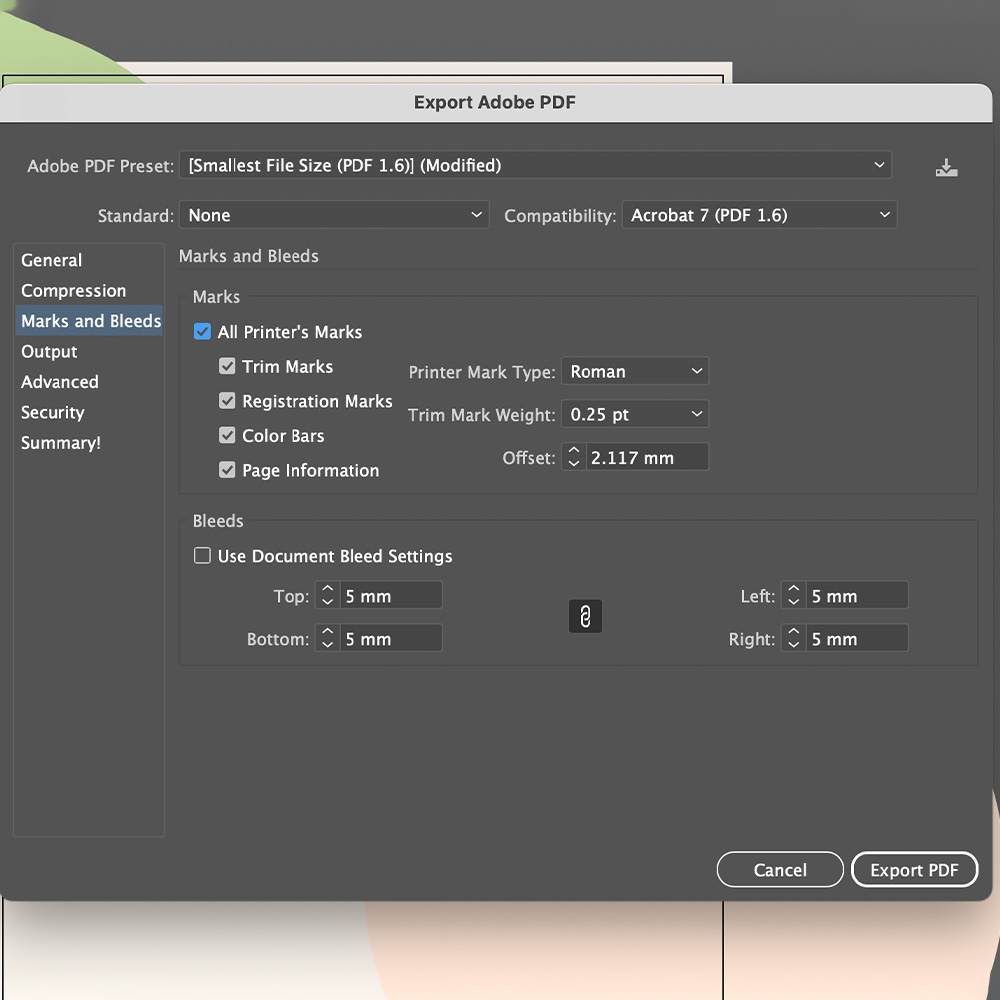

How to: In your InDesign file click File  > Export > Save As PDF > Bleeds and Marks.

Please note that for ringbound notebooks we suggest adding a larger gutter, this is dependent on the ring mechanism size and your notebook. To get more guidance on this please speak to your account manager.

Photos and Images

Artwork images should be exported to CMYK, 300 dpi and then embedded within your files. You can use photoshop to export your image files to the correct colour profile and resolution following these steps:

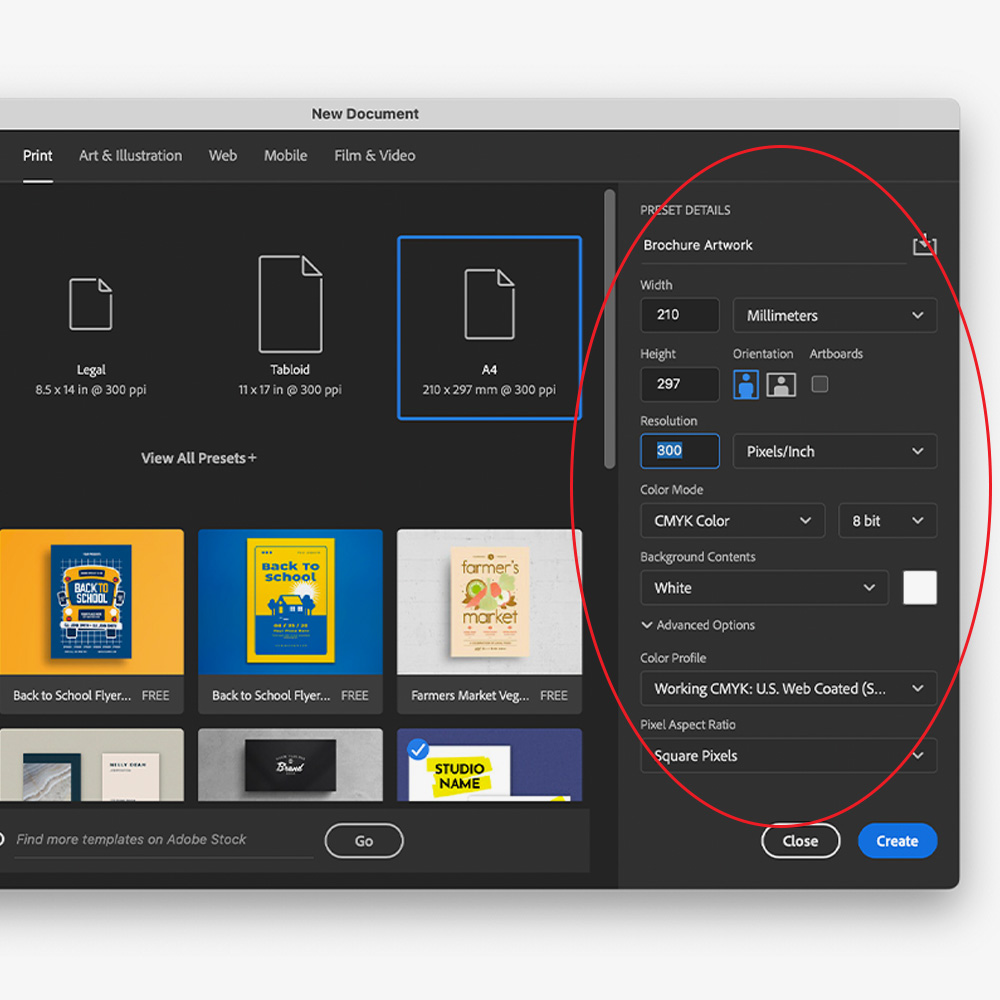

Open Photoshop > New Document > Then choose a preset or enter the document size and other details. Just ensure that your resolution is 300 and colour mode is set to CMYK.

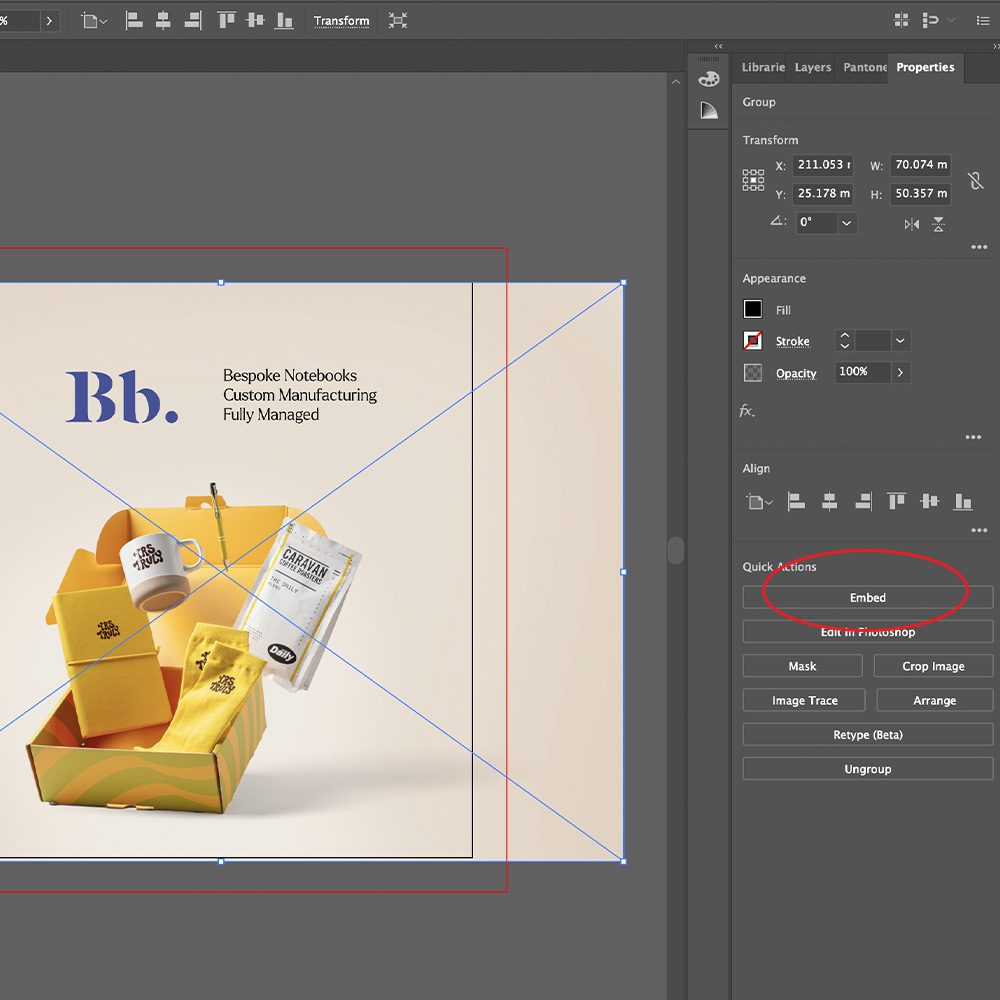

To embed a file InDesign, simply click on the image you’ve added, then click the properties panel to the right and select ‘Embed’ button.

Colour Profiles

We require artwork to be provided in CMYK (Cyan, Magenta, Yellow, and Key/Black) for accurate colour reproduction during the printing process. Using the correct colour profile ensures that your designs come out exactly as expected, avoiding any unwanted shifts in colour. InDesign’s standard profile is CMYK but if you need to switch the colour profile, you can change the profile with just a few easy steps.

Edit > Transparency Blend Spaces  > Select the CMYK profile.

Printing in B&W

Printing your notebook inside pages in Black & White is the cheapest way to print, and your document needs to be set up accordingly. To do this simply click:

File > Export > Save > Output > Colour destination > Convert To Destination > Destination > Dot Grain 25%

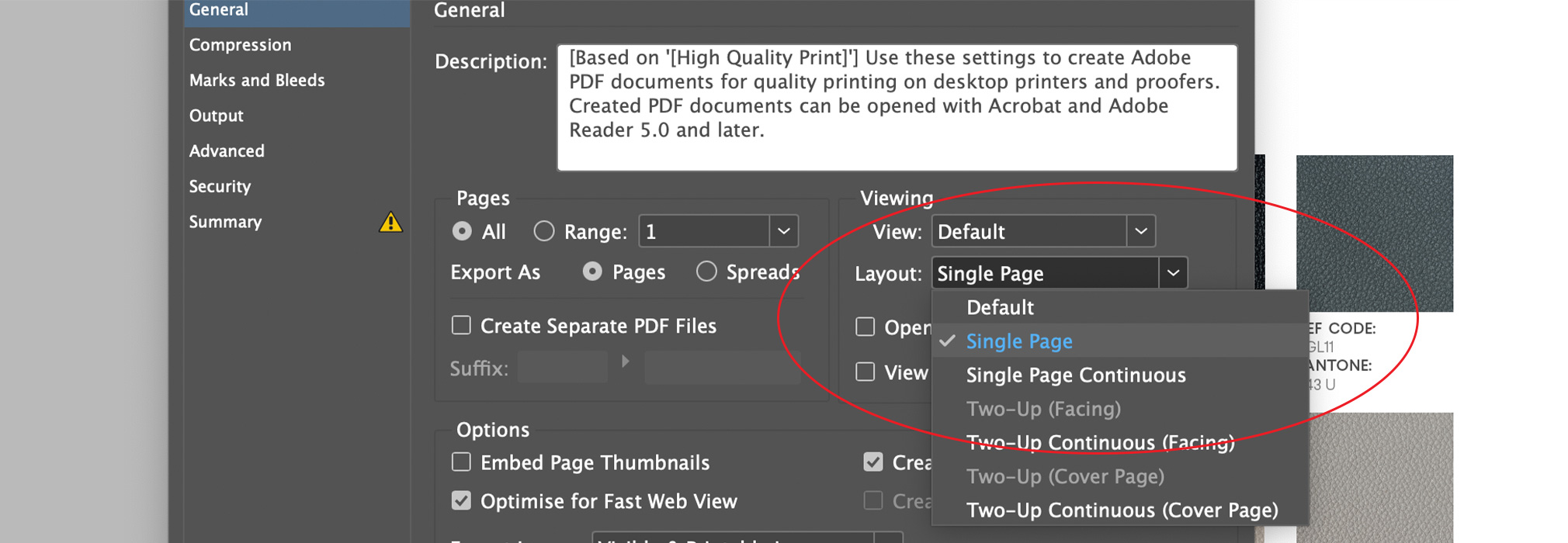

Single Page View

Your artwork file must be exported to PDF print with a single page view, you can do this by following the steps below:

Export > Save > General Settings > Viewing > View > Single.

Page count

Ensure that your document page count is a multiple of 8, ensure to account for any blank pages you’ll be including.

Multiples of 8: 8, 16, 24, 32, 40, 48, 56, 64, 72, 80, 88, 96, 104, 112, 120, 128, 136, 144, 152, 160, 168, 176, 184, 192, 200, 208, 216, 224, 232, 240, 248, 256, 264, 272, 280, 288, 296, 304, 312, 320, 328, 336, 344, 352, 360, 368, 376, 384, 392, 400, 408, 416, 424, 432, 440.

FSC® Logotype

All of our standard papers and boards are FSC®-certified and acid-free, ensuring responsible sourcing and longevity. To emphasise your notebook’s sustainability, ask your account manager for our FSC® logo to add to your design.

Inside Page Checklist:

• 5mm bleed
• 10mm margins
• 10mm glue margin on the first and last page. Glue margin on the left for the first page and on the right for the last page of the main block.
• Correct page size (A6, A5, A4)
• Page count is a multiple of 8
• Images are CMYK, 300 dpi resolution and embedded
• File is exported with all marks and bleeds
• File exported to CMYK or B&W colour profiles
• File is in single page view
• File pages are in the correct order
